Audio Analysis System 　S-265

S-265

For Precision R&D and Evaluation

Audio Analysis System

S-265

The world’s top performance
<24bit / 220k sampling frequency>
Powerfully supports your evaluation of sound quality

Product Overview

Features

The S-265 Audio Analysis System has been developed to achieve the best performance and capability as a standard system for measuring loudspeakers and microphones.

Functions

ETANI has thorough understanding of users’ practises and demands and has incorporated exclusive ideas and new features. Our vision goes beyond a simple manufacturer of measuring system. We propose an audio measurement that asserts the ideal tool for the future.
The S-265 continues to evolve to achieve the best system for measurement.

Catalog Download（PDF）
Options
■Loudspeaker Measurement Software
  • Sweep frequency response
  • Spot sweep (step-by-step sweep measuring method)
  • High impedance measuremen
  • Fire security regulatory standard (SPL using pink noise and sound warning sensitivity) measuring software and hardware
  • THD measurement (up to 50th order can be analyzed)
  • THD spot frequency response
  • Octave band noise measurement
  • Impulse Response Measurement (with FFT)
  • Power Linearity Measurement (combined to the sweep measurement)
  • Power Linearity Measurement (spot frequency / THD / IM)
  • IMD (Intermodulation distortion) measurement: SMPTE
  • IMD frequency response
  • IMD spot frequency response
  • Hi-2 Measurement
Print out example of sweep frequency characteristics

Print out example of sweep frequency characteristics
  • CW-IMD Measurement
  • Automatic Combination Measurement
  • Statistical Processing
  • Tone Burst Measurement
  • Data Base Automatic Record
  • Automatic Report Creation (under plan)
  • Data Server Viewer
  • DXF Data Exchange
  • ASCII Data Output
  • Cumulative 2π directional characteristics
  • Automatic Measurement / Test / Verification Functions
  • Graph Printing Functions
THD Measurement

THD Measurement
Moving Average Curve

Moving Average Curve
Multi-impulse

Multi-impulse
Cumulative 2π

Cumulative 2π
Pattern measurement

Pattern measurement

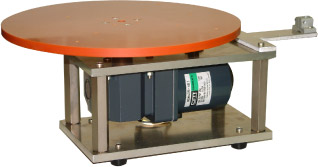

Turntable

Turntable

■Microphone Measurement Software
  • Directivity pattern measurement (with turntable control)
  • Polar Pattern Measurement (without turntable)
  • Short term power linearity measurement
